ACTIS isolants minces réflecteurs

Breather membrane



ACTIS reflective breather membranes are designed to improve the thermal performance of roofs and walls. Installed over the roof structure they protect insulation from air and water infiltration and enable water vapour to be evacuated.



Benefits

High thermal resistance

High thermal resistance

R = 2.4 m².K/W with 2 air voids of 20 mm, mesured according to the EN 16012

Healthy insulation

Healthy insulation

Without irritating fibers. Requires neither breathing mask nor safety glasses

Summer comfort

Summer comfort

Reflective films & reflecting infrared radiation

Properties

Air permeability
< 0.030 m3/(m2.h.50Pa)
Diffusion eq. air layer thickness (Sd)
< 0,11 m
Watertightness
Watertight (W1)
Vapour resistance (Z)
0.55 MNs/g
Thermal conductivity (λD)
1.35 m².K/W
Declared emissivity after ageing
0.05 / 0.31

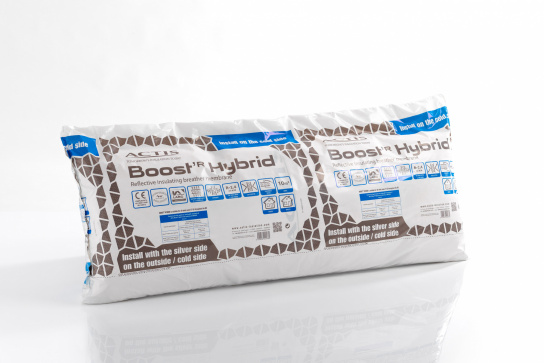

Packaging
Roll
Area
10 m² / roll
Width
1.5 m
Length
6.7 m
Thickness
35 mm +/- 5 mm

certificats & DOP

BM TRADA Q MARK BOOST'R HYBRID

BM TRADA Q MARK BOOST'R HYBRID

BOOST'R HYBRID INSTALLATION GUIDELINES

BOOST'R HYBRID INSTALLATION GUIDELINES

BOOST'R HYBRID WIND RESISTANCE

BOOST'R HYBRID WIND RESISTANCE

DOP BOOST'R HYBRID

DOP BOOST'R HYBRID

LABC BOOSTR HYBRID

LABC BOOSTR HYBRID

Accessories

MULTIDHESIF Tape

MULTIDHESIF Tape

HPV membrane insulation tape
ACTIS Cutter

ACTIS Cutter

Cutter for reflective insulation
ACTIS Cutter blades

ACTIS Cutter blades

Set of 10 spare blades
