HYBRID RANGE

Hybrid range



The Hybrid range consists of 4 innovative products which can be used separately or together to provide a complete insulation system in walls, roofs, ceilings and timber floors in refurbishment and new build projects. All products are aimed at eliminating thermal bridging, combining insulation with air tightness, moisture resistance and reflective properties, offering impressive thermal performance. The Hybrid Range system can achieve the highest U-value requirements with a minimal thickness. They are also quick, clean and easy to install.

All products within the range are UKCA & CE Marked.



Benefits

High and certified thermal performance

High and certified thermal performance

Thermal resistance R = 3,75 m².K/W with only 105 mm thickness (wall with 1 air gap)

High acoustic comfort

High acoustic comfort

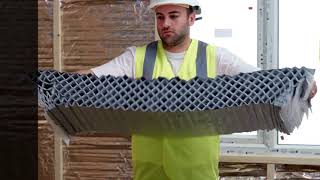

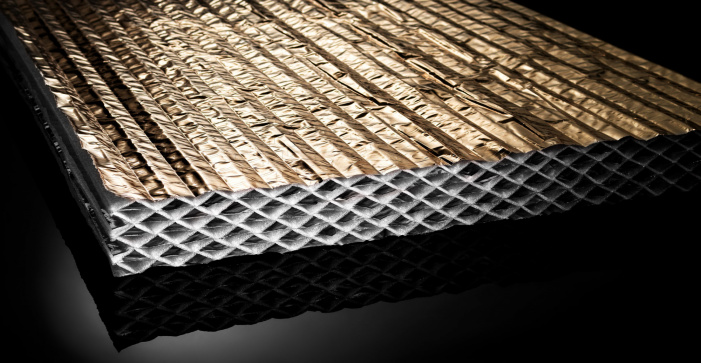

Honeycomb structure forming a network of closed cells acting as many sound traps

Durable insulation

Durable insulation

No settlement over time avoiding the risk of thermal bridging. Wind and moisture resistance

Healthy and indoor air friendly

Healthy and indoor air friendly

Without irritating fibres or harmful chemical agents. A+ for indoor air quality

Summer comfort

Summer comfort

Up to 90% of the infrared radiation returned

Thermal performances

Hybris

Thermal resistance calculated according to the standard EN ISO 6946


Thicknesses Core thermal resistance
50 mm 1.50
75 mm 2.25
90 mm 2.75
105 mm 3.20
125 mm 3.80
140 mm 4.25
155 mm 4.70
170 mm 5.15
185 mm 5.65

Hybris with two air gaps

Roof


Thicknesses Core thermal resistance
50 mm 2.35
75 mm 3.10
90 mm 3.60
105 mm 4.05
125 mm 4.65
140 mm 5.10
155 mm 5.55
170 mm 6.00
185 mm 6.50

Hybris with one air gaps

Wall


Thicknesses Core thermal resistance
50 mm 2.15
75 mm 2.90
90 mm 3.35
105 mm 3.85
125 mm 4.45
140 mm 4.90
155 mm 5.35
170 mm 5.80
185 mm 6.25

Properties

Air permeability
Airtight
Diffusion eq. air layer thickness (Sd)
> 90 m
Watertightness
Watertight (W1)
Permeability (W)
< 2.3 E-12 Kg/m2.s.Pa
Vapour resistance (Z)
450 MNs/g
Thermal conductivity (RD)
0.033 W/m.K
Core R-value
1.50 m2.K/W (50 mm) to 6.20 m2.K/W (205 mm)
Declared emissivity after ageing
0.06 / 0.10
Packaging
Panel
Width
1 145 mm
Length
1 200 mm
Thickness
50 mm to 205 mm

Certificates & DOP

BM TRADA Q MARK CERTIFICATION HYBRIS

BM TRADA Q MARK CERTIFICATION HYBRIS

BM TRADA Q MARK REGISTRATION SCHEDULE HYBRIS

BM TRADA Q MARK REGISTRATION SCHEDULE HYBRIS

DOP HYBRIS

DOP HYBRIS

EUROFINS HYBRIS

EUROFINS HYBRIS

FDES HYBRIS 105

FDES HYBRIS 105

FDES HYBRIS 125

FDES HYBRIS 125

FDES HYBRIS 90

FDES HYBRIS 90

HYBRIS - ETA European Technical Assessment

HYBRIS - ETA European Technical Assessment

HYBRIS BBA Roofs

HYBRIS BBA Roofs

HYBRIS BBA Walls

HYBRIS BBA Walls

HYBRIS DOP

HYBRIS DOP

HYBRIS INSTALLATION GUIDELINES

HYBRIS INSTALLATION GUIDELINES

UK DOP HYBRIS

UK DOP HYBRIS

UKTA-0836-22_6039

UKTA-0836-22_6039

Accessories

rien du tout

HYBRID RANGE

The Hybrid range consists of 4 innovative products which together form a complete system providing insulation, airtightness, moisture resistance and reflective properties. All products within the range are CE Marked.
The HYBRID Range system can achieve the highest U-value requirements with a minimal thickness.
