HYBRIS



HYBRIS is a unique reflective insulation product, which can be used in timber frames, masonry walls, pitched roofs and ceilings. Its unique honeycomb structure has been designed with a network of closed cells that trap heat and provide excellent thermal performance. It does not compact over timer, is light, flexible and has no irritating fibres making it quick, easy and comfortable to install.



Benefits

High and certified thermal performance

High and certified thermal performance

Thermal resistance R = 3,75 m².K/W with only 105 mm thickness (wall with 1 air gap)

High acoustic comfort

High acoustic comfort

Honeycomb structure forming a network of closed cells acting as many sound traps

Durable insulation

Durable insulation

No settlement over time avoiding the risk of thermal bridging. Wind and moisture resistance

Healthy and indoor air friendly

Healthy and indoor air friendly

Without irritating fibres or harmful chemical agents. A+ for indoor air quality

Summer comfort

Summer comfort

Up to 90% of the infrared radiation returned

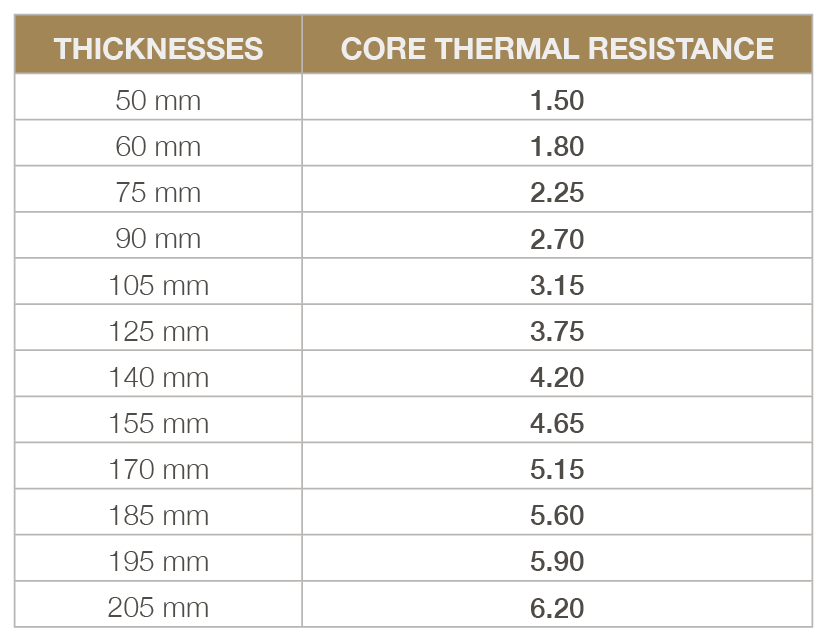

Thermal performances

Hybris

Thermal resistance calculated according to the standard EN ISO 6946


Thicknesses Core thermal Resistance
50 mm 1.50
75 mm 2.25
90 mm 2.75
105 mm 3.15
125 mm 3.75
140 mm 4.20
 155 mm 4.65
170 mm 5.15
185 mm 5.60

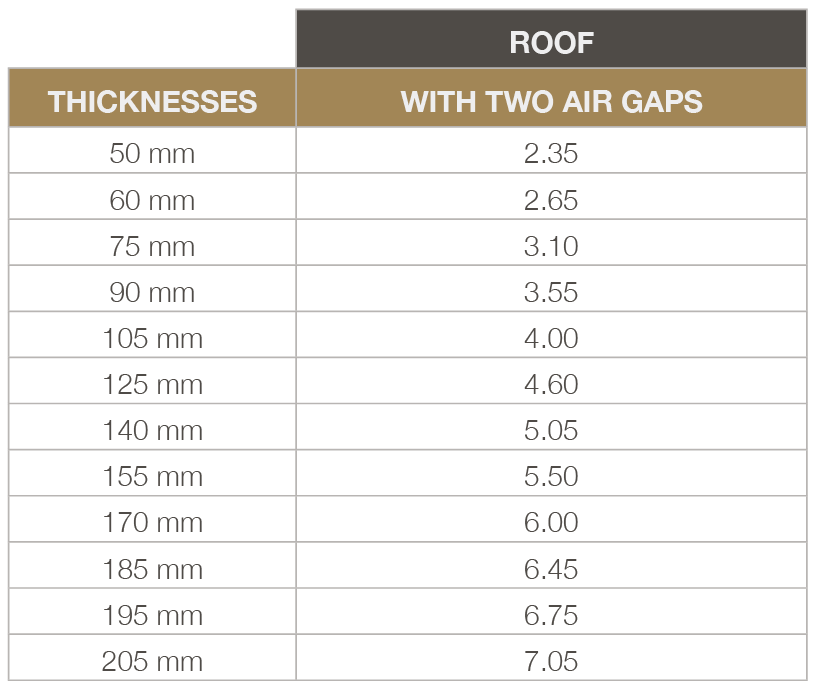

Roof

Thermal resistance calculated according to the standard EN ISO 6946


Thicknesses With two air gaps
50 mm 2.35
75 mm 3.10
90 mm 3.55
105 mm 4.00
125 mm 4.60
140 mm 5.05
155 mm 5.50
170 mm 6.00
185 mm 6.45

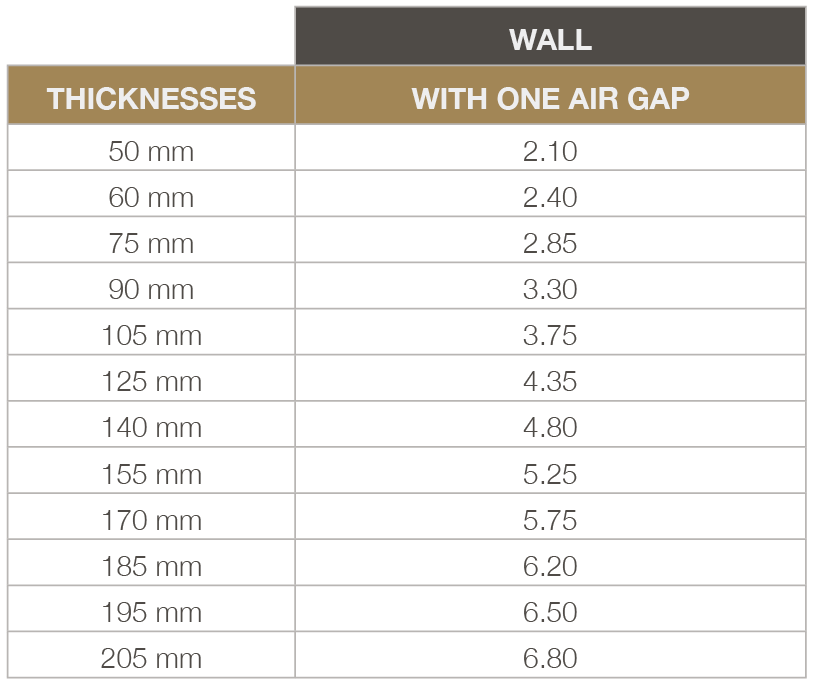

Wall

Thermal resistance calculated according to the standard EN ISO 6946


Thicknesses With one air gaps
50 mm 2.10
75 mm 2.85
90 mm 3.30
105 mm 3.75
125 mm 4.35
140 mm 4.80
155 mm 5.25
170 mm 5.75
185 mm 6.20

Properties

Air permeability
Airtight
Diffusion eq. air layer thickness (Sd)
> 90 m
Watertightness
Watertight (W1)
Permeability (W)
< 2.3 E-12 Kg/m2.s.Pa
Vapour resistance (Z)
450 MNs/g
Thermal conductivity (RD)
0.033 W/m.K
Core R-value
1.50 m2.K/W (50 mm) to 6.20 m2.K/W (205 mm)
Declared emissivity after ageing
0.06 / 0.10
Packaging
Panel
Width
1 145 mm
Length
1 200 mm
Thickness
50 mm to 205 mm
