Multifoil insulation



ACTIS thin multifoil insulation products are made up of multi-layered reflective films sewn with foams to form thin insulation blankets



BOOST'R HYBRID

BOOST'R HYBRID

Insulating breather membrane
HCONTROL HYBRID

HCONTROL HYBRID

Multifoil insulation with built in vapour control
HCONTROL REFLEX+

HCONTROL REFLEX+

Reflector vapour barrier and additional insulation
TRISO-SOLS

TRISO-SOLS

A thin insulation product for maximum thermal efficiency and minimum thickness. Ideal for renovation of existing floors.

Benefits

High thermal resistance

High thermal resistance

R = 2.4 m².K/W with 2 air voids of 20 mm, mesured according to the EN 16012

Healthy insulation

Healthy insulation

Without irritating fibers. Requires neither breathing mask nor safety glasses

Summer comfort

Summer comfort

Reflective films & reflecting infrared radiation

Properties

Air permeability
< 0.030 m3/(m2.h.50Pa)
Diffusion eq. air layer thickness (Sd)
< 0.11 m
Watertightness
Watertight (W1)
Vapour resistance (Z)
0.55 MNs/g
Thermal conductivity (RD)
1.35 m².K/W
Declared emissivity after ageing
0.05 / 0.31
Packaging
Roll
Area
16 m² / roll
Width
1.5 m
Length
10.67 m
Thickness
35 mm +/- 5 mm

Certificates & DOP

BM TRADA Q MARK CERTIFICATION BOOST'R HYBRID

BM TRADA Q MARK CERTIFICATION BOOST'R HYBRID

BM TRADA Q MARK REGISTRATION SCHEDULE BOOST'R HYBRID

BM TRADA Q MARK REGISTRATION SCHEDULE BOOST'R HYBRID

BOOST'R HYBRID INSTALLATION GUIDELINES

BOOST'R HYBRID INSTALLATION GUIDELINES

BOOST'R HYBRID WIND RESISTANCE

BOOST'R HYBRID WIND RESISTANCE

DOP BOOST'R HYBRID

DOP BOOST'R HYBRID

EUROFINS BOOSTR HYBRID

EUROFINS BOOSTR HYBRID

UK DOP BOOSTR HYBRID

UK DOP BOOSTR HYBRID

Accessories

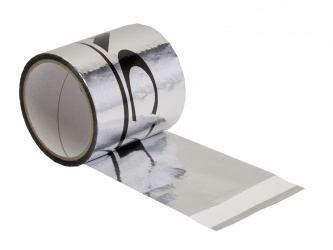

MULTIDHESIF Tape

MULTIDHESIF Tape

HPV membrane insulation tape
ACTIS Cutter

ACTIS Cutter

Cutter for reflective insulation
ACTIS Cutter blades

ACTIS Cutter blades

Set of 10 spare blades
MULTIFOIL INSULATION

ACTIS thin multifoil insulation products are three to five times thinner than traditional thick insulation but performs to the same standard. They are easy to install and are perfectly adapted for both new or refurbishment projects.
