reflective multifoil insulation

Multifoil insulation

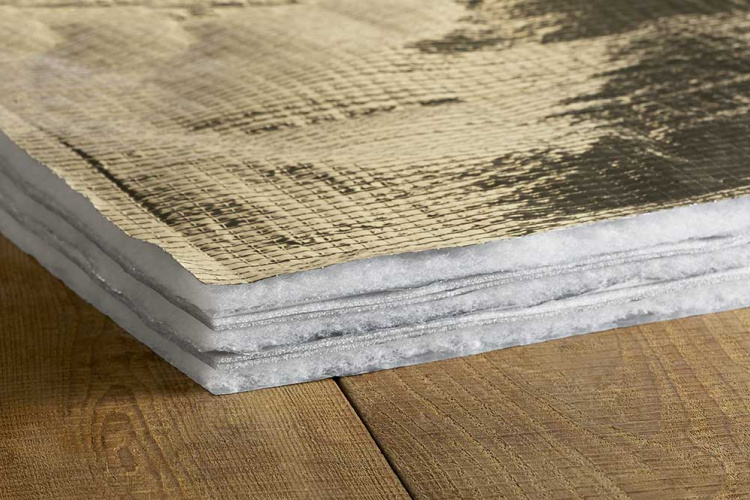

ACTIS thin multifoil insulation products are made up of multi-layered reflective films sewn with foams to form thin insulation blankets



BOOST'R HYBRID

BOOST'R HYBRID

Insulating breather membrane
view product
HCONTROL HYBRID

HCONTROL HYBRID

Multifoil insulation with built in vapour control
view product
TRISO-SOLS

TRISO-SOLS

A thin insulation product for maximum thermal efficiency and minimum thickness. Ideal for renovation of existing floors.
view product

Benefits

2 in 1

HCONTROL HYBRID combines insulation, air tightness,
moisture resistance and reflective properties.

Vapour Barrier

With a Z-value > 1000 MNs/g, Sd > 200m,
HCONTROL HYBRID blocks water vapour diffusion through the fabric of the building,
thus preventing any risk of condensation.

Airtight

HCONTROL HYBRID is airtight,
so it acts as a barrier against
air leakage and thermal convection.

User friendly

HCONTROL HYBRID is classified A+ for internal air quality according to ISO 16000.
HCONTROL HYBRID is clean and does not generate dust of fibre.

Quick and easy to install

HCONTROL HYBRID can be stapled or nailed.
HCONTROL HYBRID can be fitted to rafters with a maximum span of 600mm.
HCONTROL HYBRID can be cut with a cutter.

Flexible

The flexible properties of HCONTROL HYBRID enable fitting to any uneven surfaces,
allowing a continual insulation,
thus offering a high quality installation without air leakages.

Videos

Properties

Air permeability
Airtight
Diffusion eq. air layer thickness (Sd)
> 200 m
Watertightness
Waterlight (W1) to 2kPa
Permeability (W)
7.51 10-13 Kg/m2.s.Pa
Vapour resistance (Z)
> 1000 MNs/g
Thermal conductivity (RD)
1.90 m2.K/W
Declared emissivity after ageing
0.06
Packaging
Roll
Area
10 m² / roll
Width
1.6 m
Length
6.25 m
Thickness
45 mm +/- 5 mm

Certificates & DOP

BM TRADA Q MARK CERTIFICATION HCONTROL HYBRID

BM TRADA Q MARK CERTIFICATION HCONTROL HYBRID

BM TRADA Q MARK REGISTRATION SCHEDULE HCONTROL HYBRID

BM TRADA Q MARK REGISTRATION SCHEDULE HCONTROL HYBRID

DOP HCONTROL HYBRID

DOP HCONTROL HYBRID

EUROFINS HCONTROL HYBRID

EUROFINS HCONTROL HYBRID

HCONTROL HYBRID INSTALLATION GUIDELINES

HCONTROL HYBRID INSTALLATION GUIDELINES

UK DOP HCONTROL HYBRID

UK DOP HCONTROL HYBRID
